DUROMAX PPR PIPE & FITTINGS
INQUIRE NOW
DUROMAX PP-R HOT & COLD
50 YEARS SERVICE LIFE
BODYCOTE CERTIFIED Raw Material is used which guaranteed 50 Year Service Life.
DESIGNED FOR HOT & COLD PIPING SYSTEM
DUROMAX PPR pipes can be used upto 95 degree Celcius Temprature. Which make it ideal for wide variety of application.
FUSION TECHNOLOGY
PPr pipe and fittings are joint using Fusion technology which make leak proof joints
TOXIC FREE
Unlike general UPVC, CPVC manufacturing system no toxic and physiologically harmless material is used in manufacturing of ppr pipe, to ensure the safety of people on usage.
COST EFFICIENT
PPR with all its characteristics combined resulting to efficiency and durability, it reduces the cost of replacements and maintenance of the piping system.
100% VIRGIN RAW MATERIAL FROM Germany/KOREA
Duromax PPR pipe is manufactured with Raw Material Imported from Germany and Korea. That gives the advantage of high impact strength, resistance to high temperature and long service life.
- High rise Residential Project
- Industrial Projects (for both chemicals and water)
- Industrial Compressed Air line
- Railway Projects
- Swimming Pool pipe networks
- HVAC
- Portable Water Supply System
Advantages of using DUROMAX PP-R
- Designed to be used for both Hot & Cold potable water applications in hospitals, hotels and food industry
- 100% Safe and Non-toxic Food Grade material
- Rust and Corrossion free
- High Pressure rating
- Due to low thermal conductivity it has energy-saving abilities
- Low Noise
- Lightweight and Easy to Transport
- Heat Fusion Technology ensuring Leak Free connections
- 50 Year Service Life
- Easy connectivity over a complex network
High resistance to aggressive elements giving the system an extremely long service life of 50 years and more
Installation of DUROMAX PP-R Pipes
1. Heat the welding machine at 260°C. Then heat both pipe and fitting for the time mentioned in table below.
2. After the heating period is finished, remove both pipe and fittings and then couple them together by inserting pipe inside the fittings for the marked length with gentle and uniform pressure. Do not rotate the components. After this, check the axis alignment of both components.
2. After the heating period is finished, remove both pipe and fittings and then couple them together by inserting pipe inside the fittings for the marked length with gentle and uniform pressure. Do not rotate the components. After this, check the axis alignment of both components.
3. After Sucessfull Joint make sure not to move the pipe or fitting too much which causes joint to more. This can weaken the joint. Make sure you give enough cooling time (mentioned in table below) for good joint.

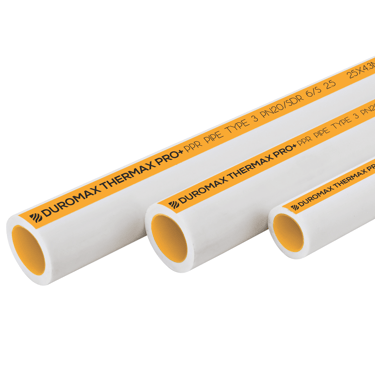

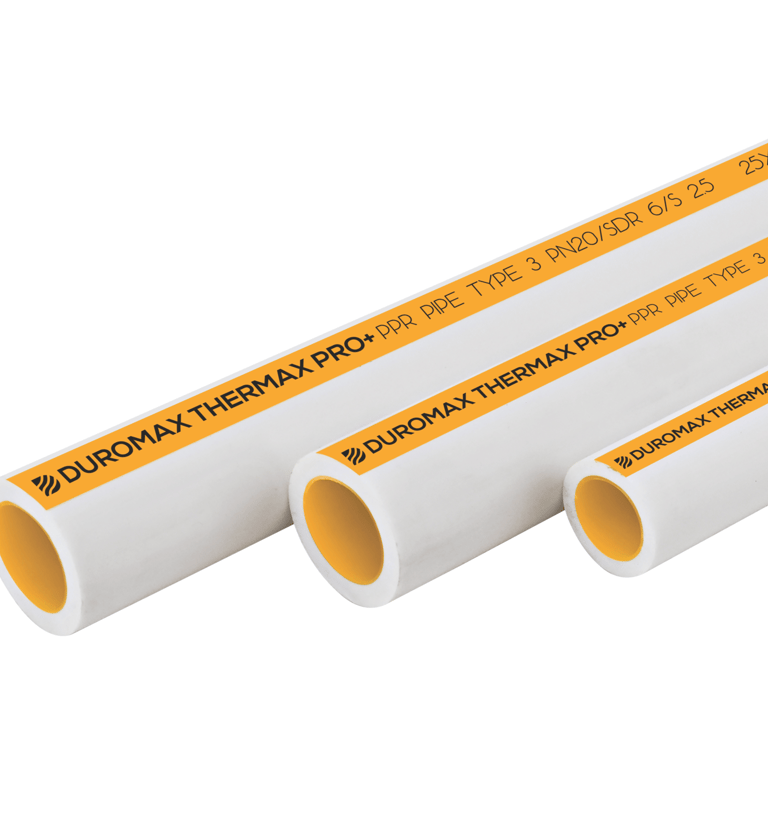

DUROMAX THERMAX PRO+ PPR PIPE
DUROMAX THERMAX PRO+ PIPE AND FITTINGS are specially formulated for extremely cold region. Region specially Srinagar, Leh Ladakh and other region where temperature goes below 0 degree.
Do you need a piping system that is high quality, cost-effective and reliable?
Try our DUROMAX PPR High Pressure Piping System!
| OUTSIDE DIAMETER | PN-10/SDR11 | PN-16/SDR7.4 | PN-20/SDR6 | ||
|---|---|---|---|---|---|
| SIZE | +ve Tolerance | Ovality | Wall thickness | Wall thickness | Wall thickness |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 20 | 0.3 | 1.2 | 2.00 | 2.90 | 3.60 |
| 25 | 0.3 | 1.2 | 2.40 | 3.60 | 4.20 |
| 32 | 0.3 | 1.3 | 3.00 | 4.50 | 5.60 |
| 40 | 0.4 | 1.4 | 3.80 | 5.60 | 6.80 |
| 50 | 0.5 | 1.4 | 4.60 | 7.10 | 8.50 |
| 63 | 0.6 | 1.6 | 5.90 | 8.80 | 11.70 |
| 75 | 0.7 | 1.6 | 6.90 | 10.50 | 12.60 |
| 90 | 0.9 | 1.8 | 8.30 | 12.50 | 15.20 |
| 110 | 0.9 | 2.2 | 10.20 | 15.30 | 18.50 |
| 160 | 1.5 | 3.2 | 14.60 | 21.90 | 26.60 |
| ELBOW 90° DEG | Sizes |
|---|---|
#rowspan# | E90 20 mm |
| E90 25 mm | |
| E90 32 mm | |
| E90 40mm | |
| E90 50mm | |
| E90 63 mm | |
| E90 75 mm |
| TEE | Sizes |
|---|---|
 | T 20mm |
| T 25 mm | |
| T 32 mm | |
| T 40mm | |
| T 50mm | |
| T 63 mm | |
| T 75 mm |
| Socket | Sizes |
|---|---|
 | S 20 mm |
| S 25 mm | |
| S 32 mm | |
| S 40mm | |
| S 50mm | |
| S 63 mm | |
| S 75 mm |
| Union | Sizes |
|---|---|
 | U 20 mm |
| U 25 mm | |
| U 32 mm | |
| U 40mm | |
| U 50mm | |
| U 63 mm |
| End-Cap | Sizes |
|---|---|
 | EC 20 mm |
| EC 25 mm | |
| EC 32 mm | |
| EC 40mm | |
| EC 50mm | |
| EC 63 mm |
| Tank-Connector | Sizes |
|---|---|
 | TN 20 mm |
| TN 25 mm | |
| TN 32 mm | |
| TN 40mm | |
| TN 50mm | |
| TN 63 mm |
| Cross-Over | Sizes |
|---|---|
#rowspan# | CROSS 25 mm |
| CROSS 32 mm |
| Ball-Valve | Sizes |
|---|---|
 | BV 20 mm |
| BV 25 mm | |
| BV 32 mm | |
| BV 40mm | |
| BV 50mm | |
| BV 63 mm | |
| BV 75 mm |
| FTA | Sizes |
|---|---|
 | FTA 20X1/2" |
| FTA 25X1/2" | |
| FTA 32X1" | |
| FTA 40X1 1/4" | |
| FTA 50X1 1/2" | |
| FTA 63X2" | |
| FTA 75X2 1/2" |
| Fte | Sizes |
|---|---|
 | FTE 20X1/2" |
| FTE 25X1/2" | |
| FTE 25X3/4" | |
| FTE 40X1 1/4" | |
| FTE 50X1 12" | |
| FTE 63X2" | |
| FTE 75X2 1/2" |
